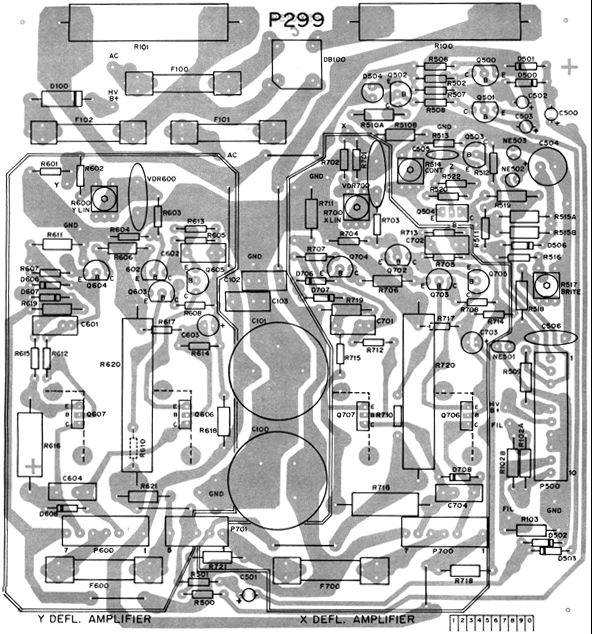

DEFLECTION AMPLIFIER P.C.B. LAYOUT COMPONENT SIDE
NOTE: ONLY THE BRIGHTNESS CONTROL (R517) AND THE CONTRAST CONTROL (R514) ON THE DEFLECTION
AMPLIFIER PCB ARE "FIELD ADJUSTABLE." X AND Y LINEARITY CONTROLS HAVE BEEN FACTORY ADJUSTED
AND SHOULD NOT BE TAMPERED WITH.
