Re: X-Y Self Contained Monitor Tester

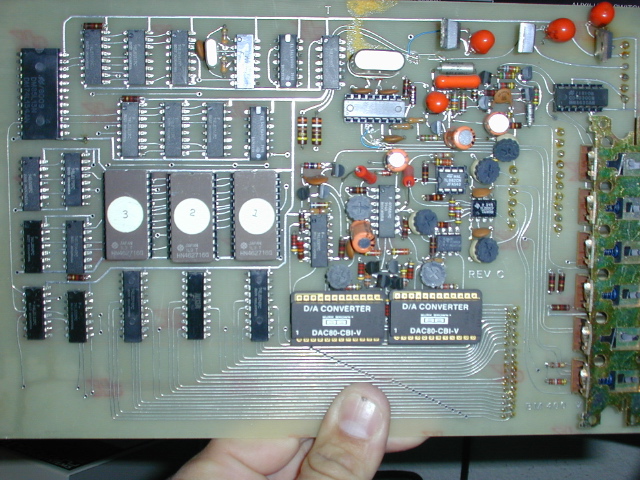

Oh, and the 4th picture I think your filter caps are failing. The ones with
an orange film (not the tear-drop shaped Tantalums) have one or two that
look like the film has pulled away from the top of the capacitor leaving a
larger amount of the aluminum body showing, this is an indication that the
cap has been overheated as the film is heatshrink and shows the failure of
the cap by drawing away from the top of the capacitor. The one furthest to
the right (2 o'clock position) looks the worst to my eyes...just above two
trim pots...I'd replace it and see what happens.

John :-#)#

At 06:36 PM 19/03/2002 -0500, Thomas43@aol.com wrote:

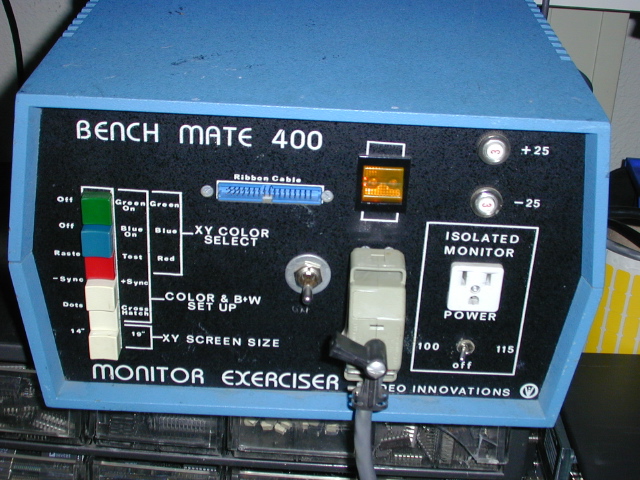

>I was finally able to find the cables for this Video Innovations Monitor
>Exerciser. It allows you to test various monitors without the isolation
>transformer or a working boardset. I don't have any manuals for it, so I'm
>not sure what the pinouts are for raster or b&w Vector monitors. The actual
>PCB seems simple enough. The unit is not 100% working as you can see AC
>Ripple in the display and there seems to be a problem with the DAC's or OP
>Amps. Here are 4 pics-
>
>http://www.safestuff.com/benchmate1.jpeg
>http://www.safestuff.com/benchmate2.jpeg
>http://www.safestuff.com/benchmate3.jpeg
>http://www.safestuff.com/benchmate4.jpeg
>
>Maybe I can dump the ROMS and someone can write a MAME driver for them ;-).
>
>Scott
>---------------------------------------------------------------------------
